Industrial 5-Axis Automatic Spray Painting Machine
The 5-Axis Automatic Spray Painting Machine is an intelligent coating system developed for manufacturers seeking higher productivity, consistent paint quality, and lower operating costs. Combining advanced servo motion control, PLC automation, and multi-station production technology, the machine delivers precise and repeatable coating results across a wide range of industries.
Available in 2-station, 4-station, and 8-station configurations, the system can be adapted to prototyping, medium-volume production, and fully automated mass manufacturing environments.
Key Features
High Precision 5-Axis Linkage Technology
The X, Y, Z, A, and B axes operate simultaneously to ensure accurate spraying trajectories and uniform coating thickness on complex workpieces.
PLC Touchscreen Control System
The industrial PLC controller with 7-inch touchscreen HMI allows parameter-based operation without complicated programming. Multiple spray recipes can be stored for quick production changeovers.
Servo Motor Driven Motion System
All axes are powered by high-performance servo motors and precision linear guides, achieving repeat positioning accuracy of up to ±0.1 mm.
Flexible Spray Gun Configuration
Supports 1-4 automatic spray guns and can be configured according to coating requirements and production capacity.
Industrial Explosion-Proof Design
Constructed from SUS304 stainless steel with isolated electrical and pneumatic systems to provide safe operation in industrial paint environments.
Available Workstation Configurations

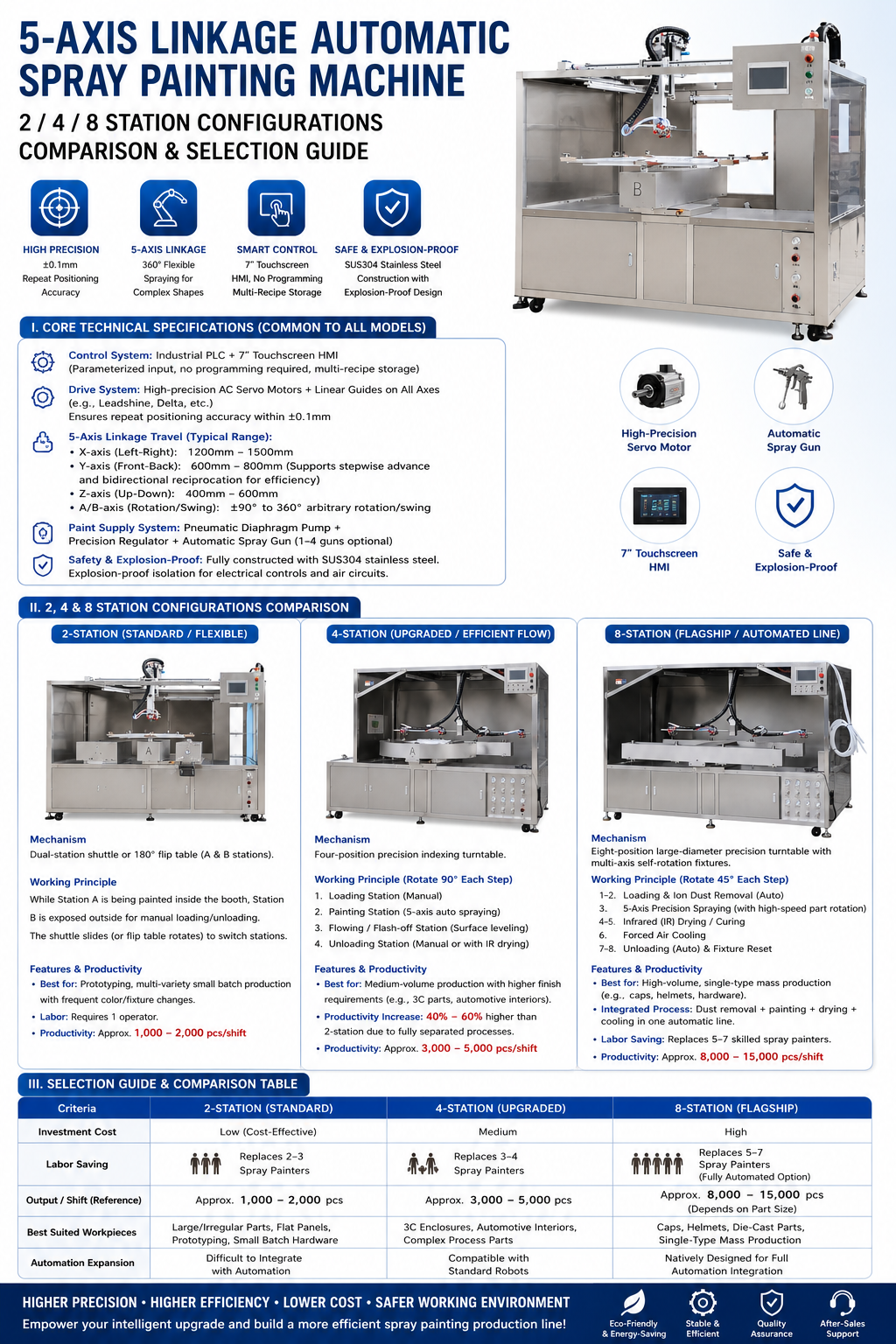

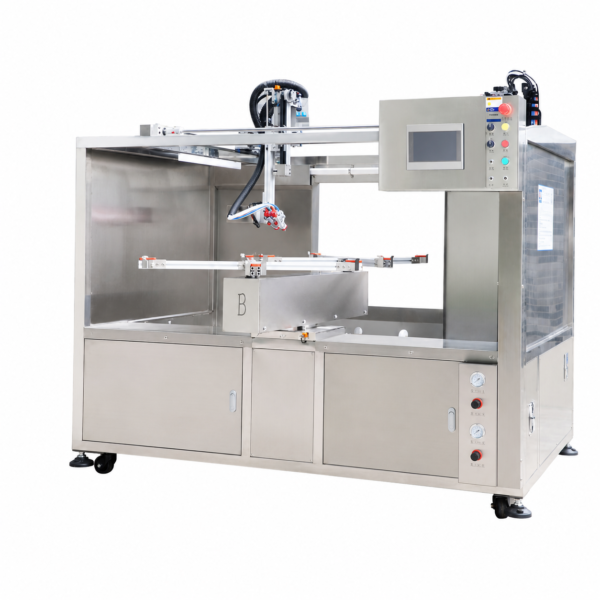

2-Station Spray Painting Machine
Ideal for product development, sampling, and small-batch manufacturing. Operators can load and unload parts while spraying continues on the opposite station, maximizing machine utilization.
- Machine Size: 1480 × 1840 × 1900 mm
- Flat Spray Stroke: 888 × 750 × 120 mm
- Workpiece Size: 600 × 600 mm
- Voltage: 220V
- Power: 1000W
- Weight: 320 kg

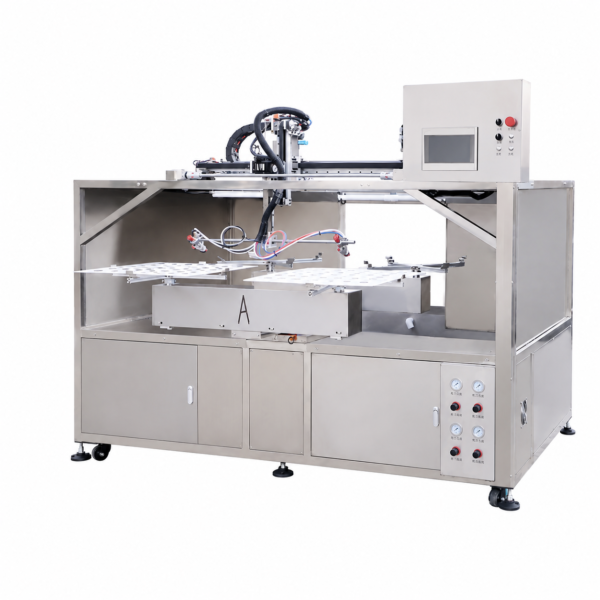

4-Station Spray Painting Machine
The four-station indexing turntable design separates loading, spraying, leveling, and unloading processes to improve productivity and coating consistency.
- Machine Size: 2330 × 1660 × 1830 mm
- Flat Spray Stroke: 840 × 900 × 150 mm
- Workpiece Size: 600 × 600 mm
- Voltage: 220V
- Power: 1200W
- Weight: 550 kg

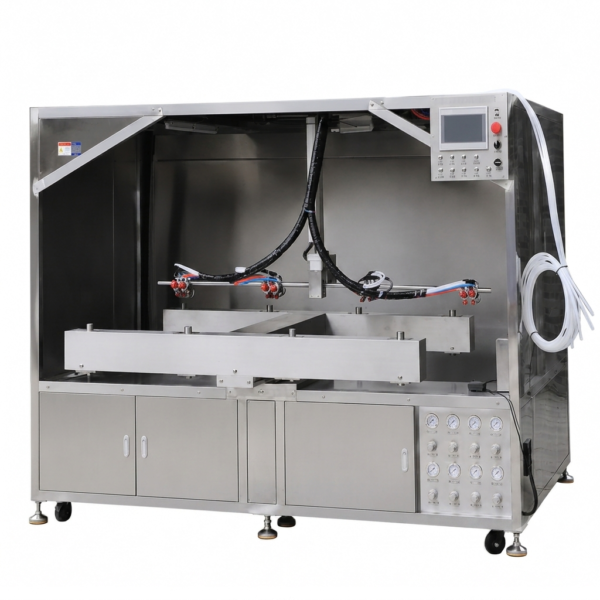

8-Station Spray Painting Machine
The fully automated 8-station model integrates dust removal, spraying, drying, cooling, and unloading into a single intelligent production system.
- Machine Size: 2250 × 1960 × 2575 mm
- Flat Spray Stroke: 300 × 300 × 480 mm
- Maximum Workpiece Size: 250 mm
- Voltage: 220V
- Power: 3700W
- Weight: 590 kg
Applications
- Helmet Manufacturing
- Bottle Caps
- Plastic Parts
- Metal Components
- Automotive Interior Parts
- Consumer Electronics Housings
- Wood Products
- Furniture Accessories
- Hardware Components
- Decorative Products
Why Choose Our Automatic Spray Painting Machine?
Lower Labor Costs
Replace multiple skilled spray painters with one automated solution.
Consistent Coating Quality
Reduce overspray and achieve stable paint thickness across all parts.
Higher Productivity
Multi-station designs dramatically improve production throughput.
Automation Ready
Supports robotic loading and unloading systems for fully automated production lines.
