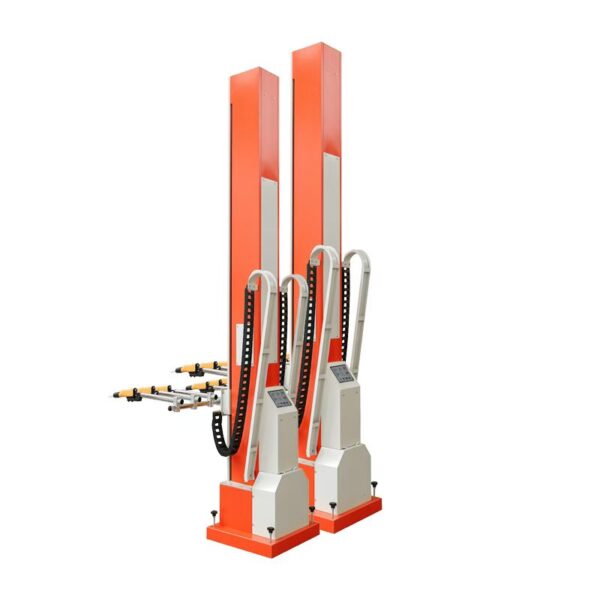

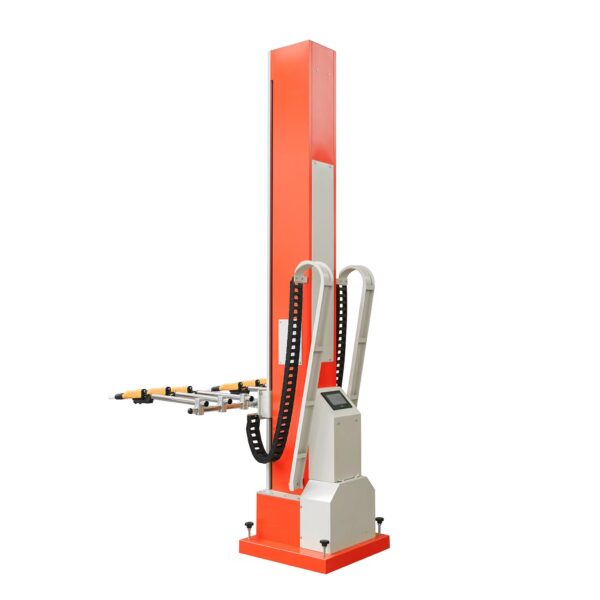

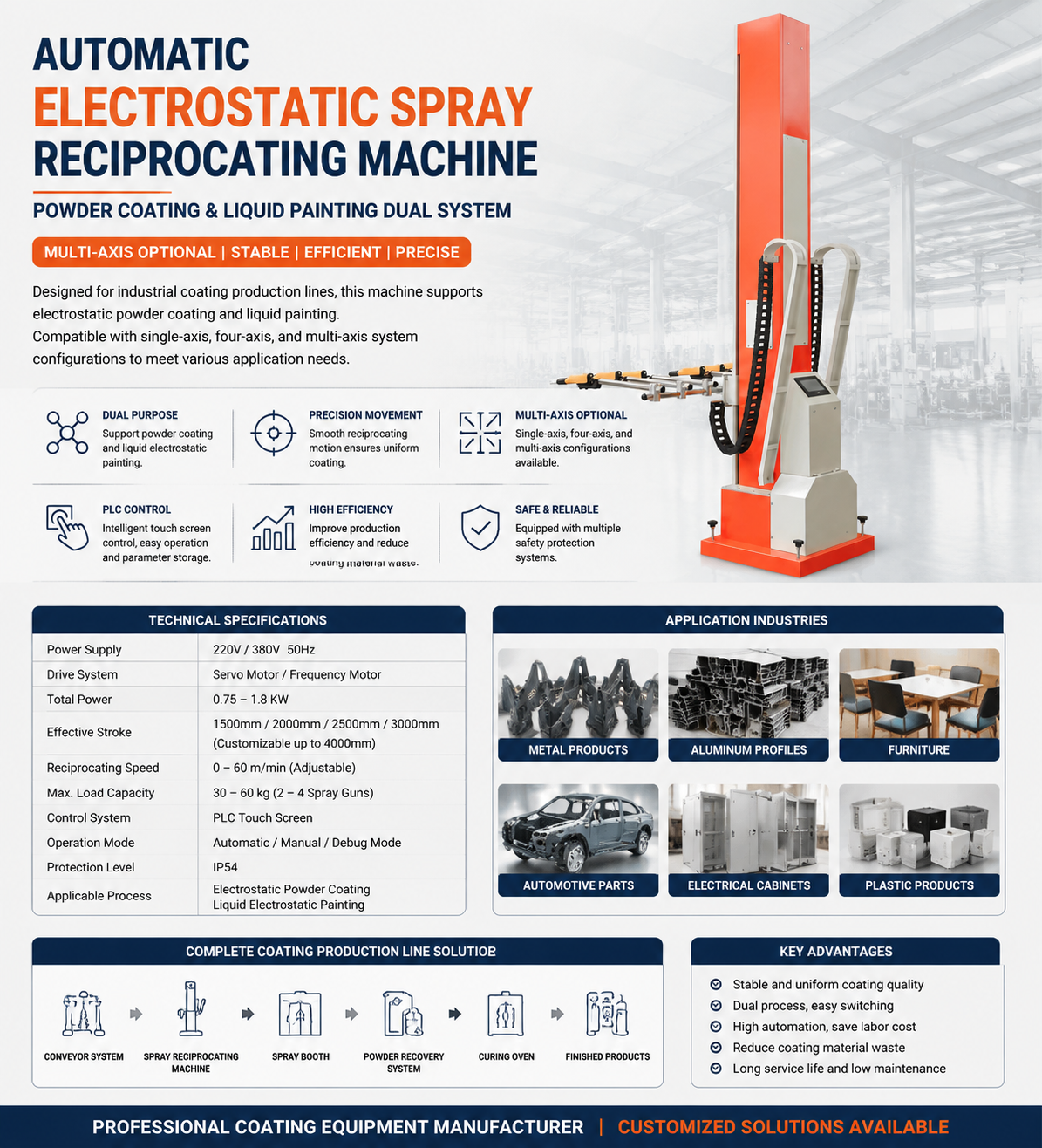

Automatic Electrostatic Spray Reciprocating Machine (Powder & Liquid Coating System)
The Automatic Electrostatic Spray Reciprocating Machine is an industrial coating system designed for both powder coating and liquid electrostatic painting applications. The machine adopts a precision reciprocating vertical motion structure, enabling uniform spray coverage on metal, aluminum, and plastic components. It is widely used in automated coating production lines requiring stable performance, high efficiency, and consistent surface quality.
Product Overview
This equipment is engineered to support dual coating processes, including electrostatic powder spraying and liquid paint spraying. By replacing the spray gun and feeding system, the machine can switch between different coating methods without modifying the main structure. It is suitable for continuous industrial production environments and supports integration into automated conveyor lines.
Coating System Functionality
The machine operates through a servo or frequency-controlled reciprocating system, ensuring stable vertical movement of the spray gun assembly. This allows precise control of coating thickness and spray uniformity across different product geometries. The system is designed to minimize overspray and improve material utilization efficiency.
Axis Configuration Options
The equipment is available in multiple axis configurations, including single-axis, four-axis, and multi-axis systems. Each configuration is designed to meet different production requirements, from standard coating applications to complex surface spraying operations. The modular structure allows future expansion based on production needs.
Control and Drive System
The machine is equipped with an industrial PLC control system with a touchscreen interface. Operating parameters such as spray speed, stroke height, delay time, and reciprocating frequency can be programmed and stored. The drive system uses servo or variable frequency motors to ensure smooth and accurate motion control.
Mechanical Structure
The main frame is constructed from heavy-duty industrial steel, providing high rigidity and vibration resistance during continuous operation. The spray beam and guide rail system are designed for long service life under industrial coating conditions. All mechanical components are optimized for stable and repeatable movement performance.
Safety Protection System
The equipment includes multiple safety protection features, such as emergency stop function, mechanical limit switches, overload protection, and anti-collision design. These systems ensure safe operation in industrial environments and reduce the risk of equipment failure or operator error.
Power and Electrical System
The machine supports industrial power supply options of 220V or 380V, depending on production requirements. The electrical system is designed for stable operation under continuous working conditions, making it suitable for 24-hour production lines.
Applications
The Automatic Electrostatic Spray Reciprocating Machine is widely used in industrial coating applications, including metal hardware parts, aluminum profiles, furniture components, automotive parts, electrical enclosures, and plastic products. It is suitable for both powder coating and liquid paint finishing processes.
Industrial Integration Capability
The machine can be integrated into full automatic coating production lines, including conveyor systems, spray booths, powder recovery systems, and curing ovens. It is designed to support scalable industrial automation solutions for coating manufacturers.
Conclusion
This Automatic Electrostatic Spray Reciprocating Machine provides a stable, efficient, and flexible solution for modern industrial coating applications. With dual-process capability, multi-axis configuration options, and industrial-grade control systems, it is suitable for manufacturers seeking high-quality surface finishing and automated production efficiency.
