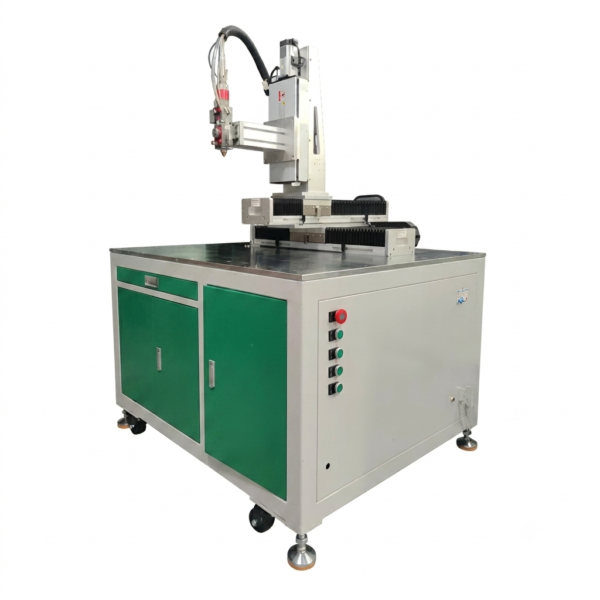

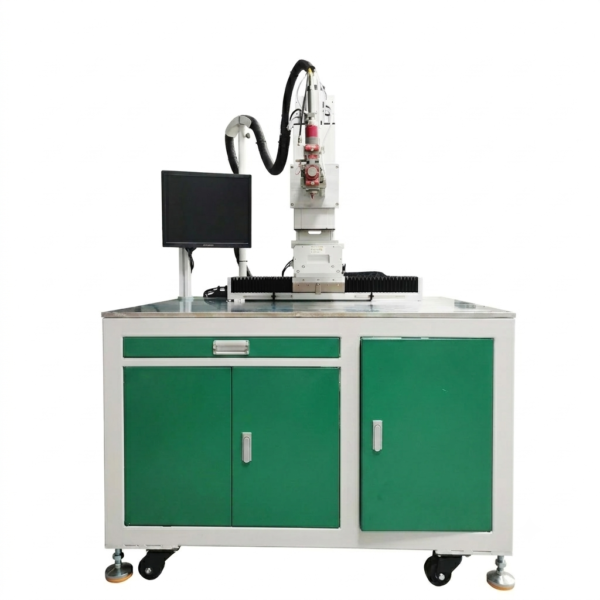

Industrial Laser Drilling, Engraving & Cutting Machine
The Industrial Laser Drilling, Engraving & Cutting Machine combines laser drilling, engraving, cutting, marking and slotting into one compact system. Designed for precision metal processing, it delivers exceptional speed, accuracy and reliability for modern manufacturing industries.
Key Features of Industrial Laser Drilling Machine
High-Speed Laser Drilling
Capable of drilling up to 1,000 holes per second, significantly improving production efficiency.
Ultra-High Precision
Positioning accuracy reaches ±0.002mm, enabling micro-hole drilling with diameters as small as 0.01mm.
Laser Cutting & Engraving
Supports cutting, engraving, marking, slotting and graphic processing with clean edges and burr-free results.
Non-Contact Processing
Laser processing eliminates tool wear, prevents scratches and minimizes heat-affected zones.
Water Cooling Technology
Advanced water cooling ensures stable laser performance, continuous operation and longer equipment life.
Intelligent CNC Control
One-touch operation allows users to start processing quickly with simple parameter settings.
Energy Efficient Design
No consumable cutting tools are required, reducing operating costs and improving environmental performance.
Wide Material Compatibility
Suitable for stainless steel, carbon steel, aluminum, copper and many other metal materials.
Technical Specifications
| Item | Specification |
|---|---|
| Laser Power | 600W / 800W |
| Laser Wavelength | 1064nm |
| Laser Frequency | 0.1Hz–500Hz |
| Drilling Range | 0–600mm (Optional) |
| Maximum Drilling Depth | ≤5mm (Depending on Material) |
| Repeat Accuracy | ±0.002mm |
| Power Consumption | 18KW / 20KW |
| Power Supply | 220V / 50Hz |
| Cooling System | Industrial Water Cooling |
Processing Capabilities
- Laser Drilling
- Laser Cutting
- Laser Engraving
- Laser Marking
- Laser Slotting
- Graphic Cutting
- Micro Hole Drilling
- Irregular Hole Processing
Applications
Suitable for hardware manufacturing, automotive parts, molds, communication components, stainless steel processing, aluminum products, copper products, industrial precision components and metal fabrication.
Why Choose Our Industrial Laser Processing Machine
- Laser drilling, engraving and cutting in one machine
- High-speed drilling up to 1,000 holes per second
- ±0.002mm ultra-high precision
- Minimum hole diameter of 0.01mm
- Clean, burr-free processing
- Water cooling for continuous operation
- Simple CNC operation
- Low operating cost and energy efficient
