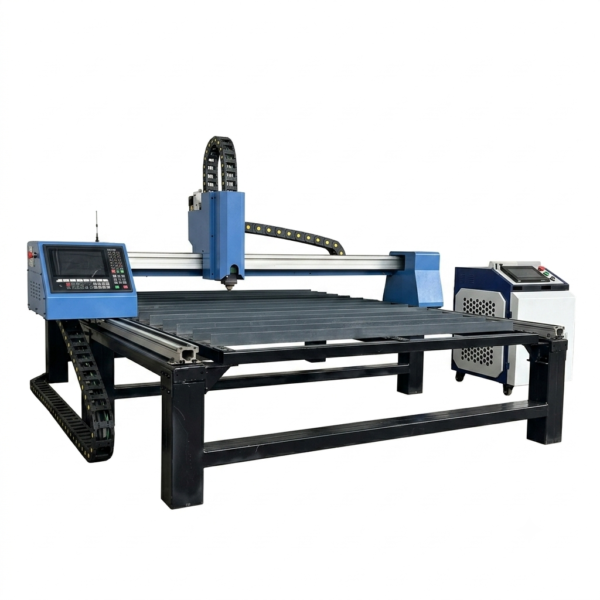

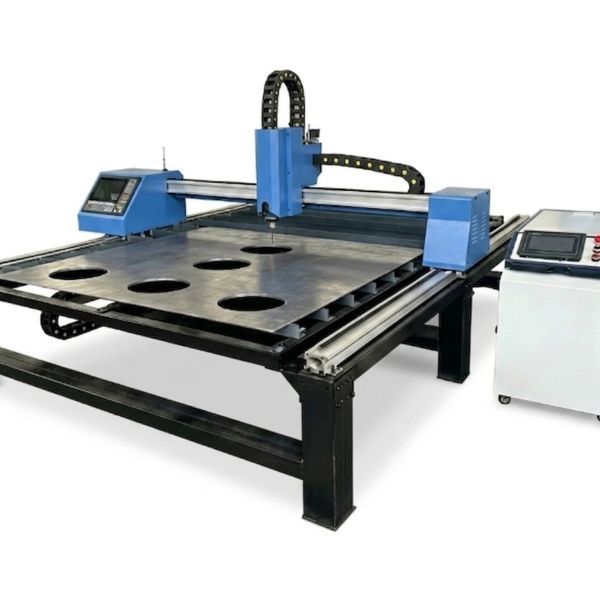

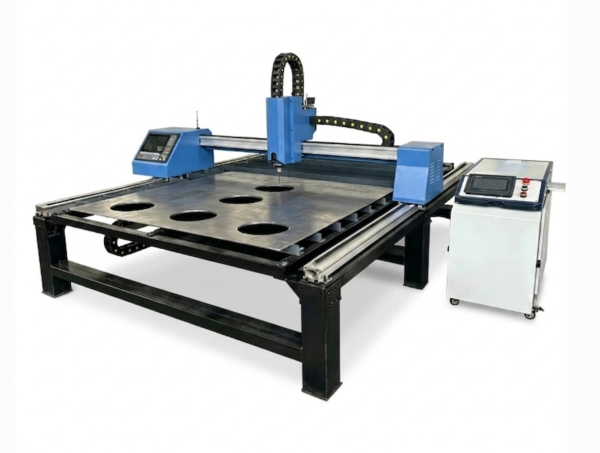

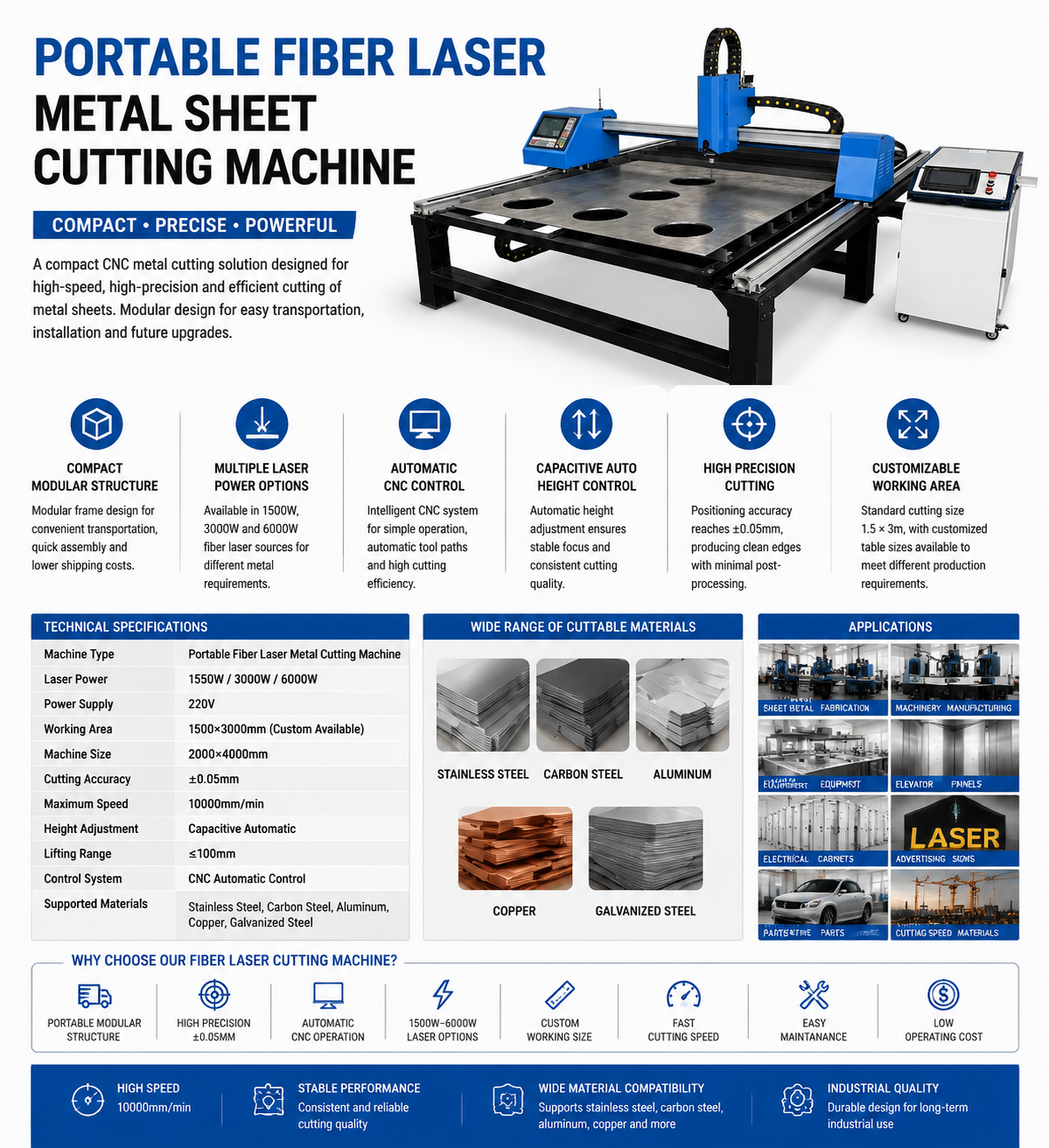

Portable Fiber Laser Metal Sheet Cutting Machine
The Portable Fiber Laser Metal Sheet Cutting Machine is a compact CNC metal cutting solution designed for high-speed and high-precision processing of stainless steel, carbon steel, aluminum, copper and galvanized steel. Its modular design allows easy transportation, installation and future upgrades while maintaining industrial cutting performance.
Portable Fiber Laser Cutting Machine Features
Compact Modular Structure
The machine adopts a modular frame design for convenient transportation, quick assembly and lower shipping costs.
Multiple Laser Power Options
Available in 1500W, 3000W and 6000W fiber laser sources for different metal thickness requirements.
Automatic CNC Control
The intelligent CNC system provides simple operation, automatic tool paths and high cutting efficiency.
Capacitive Auto Height Control
Automatic height adjustment ensures stable focus and consistent cutting quality on different metal sheets.
High Precision Cutting
Positioning accuracy reaches ±0.05mm, producing clean edges with minimal post-processing.
Customizable Working Area
Standard cutting size is 1.5×3m, with customized table sizes available to meet different production requirements.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | Portable Fiber Laser Metal Cutting Machine |
| Laser Power | 1500W / 3000W / 6000W |
| Power Supply | 220V |
| Working Area | 1500×3000mm (Custom Available) |
| Machine Size | 2000×4000mm |
| Cutting Accuracy | ±0.05mm |
| Maximum Speed | 10000mm/min |
| Height Adjustment | Capacitive Automatic |
| Lifting Range | ≤100mm |
| Control System | CNC Automatic Control |
| Supported Materials | Stainless Steel, Carbon Steel, Aluminum, Copper, Galvanized Steel |
Applications
Suitable for sheet metal fabrication, machinery manufacturing, kitchen equipment, elevator panels, electrical cabinets, advertising signs, automotive parts, construction materials, metal furniture and industrial processing.
Why Choose Our Fiber Laser Cutting Machine
- Portable modular structure
- High precision ±0.05mm
- Automatic CNC operation
- 1500W–6000W laser options
- Custom working size
- Fast cutting speed
- Easy maintenance
- Low operating cost
