Automating spray painting can help manufacturers improve coating consistency, reduce repetitive manual work, and increase production efficiency. However, not every factory needs a complex robotic painting system.
A drag teaching spray painting machine provides a simple way to automate industrial coating. The operator can manually guide the spray gun along the required path, and the machine records the movement for automatic repeat spraying.
This makes the technology suitable for furniture, hardware, plastic parts, decorative components, and many irregular-shaped products.
What Is a Drag Teaching Spray Painting Machine?
A drag teaching spray painting machine uses a teach-and-repeat method.
Instead of creating a spraying program through complicated robot programming, the operator manually guides the spray gun around the product. The machine records the spraying path and can reproduce it automatically during production.
The basic process is:
Manual Teaching → Path Recording → Automatic Spraying → Repeat Production
This makes the machine easier to operate and suitable for factories that want to introduce spray painting automation without complicated programming.
Main Advantages of Drag Teaching Technology
Compared with conventional manual spraying, drag teaching automation can provide several advantages:
- Easier operation without complex programming
- Repeatable spraying paths
- More consistent spray-gun movement
- Reduced repetitive manual spraying
- Faster product changeover
- Suitable for different product shapes
- Stored paths for repeat production
The technology is particularly useful for manufacturers producing multiple product models or small and medium batches.
500+ Spray Path Memory
One important feature of the Yifan drag teaching spray painting machine is its ability to store 500+ motion paths.
Different products can use different spraying programs.
For example, a factory may produce several models of chair frames, metal brackets, hardware components, or plastic housings. Once the spraying path for each product has been taught and saved, the operator can recall the required path when the product returns to production.
This can reduce repeated setup work and make the machine more flexible for multi-product manufacturing.
A/B Dual Workstations
The machine can also use an A/B dual-workstation configuration.
While one workstation is being sprayed automatically, the operator can load or unload products on the other workstation.
For example:
Station A: Spraying
Station B: Loading / Unloading
Then the process switches:
Station A: Loading / Unloading
Station B: Spraying
This arrangement helps reduce waiting time between spraying cycles and can improve overall equipment utilization.
What Products Can Be Sprayed?
A drag teaching spray painting machine can be used for various industrial coating applications, including:
Furniture
- Chair frames
- Table components
- Cabinets
- Wooden parts
- Decorative furniture components
Metal Hardware
- Brackets
- Metal fittings
- Frames
- Hardware accessories
- Decorative metal parts
Plastic Products
- Plastic housings
- Plastic shells
- Containers
- Molded components
Irregular-Shaped Parts
The manual teaching method allows the operator to create spraying paths according to the actual product shape, making it suitable for many products that are difficult to spray consistently by hand.
Drag Teaching vs. Manual Spray Painting
| Manual Spraying | Drag Teaching |
|---|---|
| Depends heavily on operator skill | Recorded spraying paths |
| Repetitive manual operation | Automatic repeat spraying |
| Movement may vary | More consistent movement |
| Difficult to reproduce the same path | Stored paths can be reused |
| Higher labor dependence | Reduced repetitive work |
Automation does not replace proper paint preparation or coating process control, but it can make the spraying movement more repeatable.

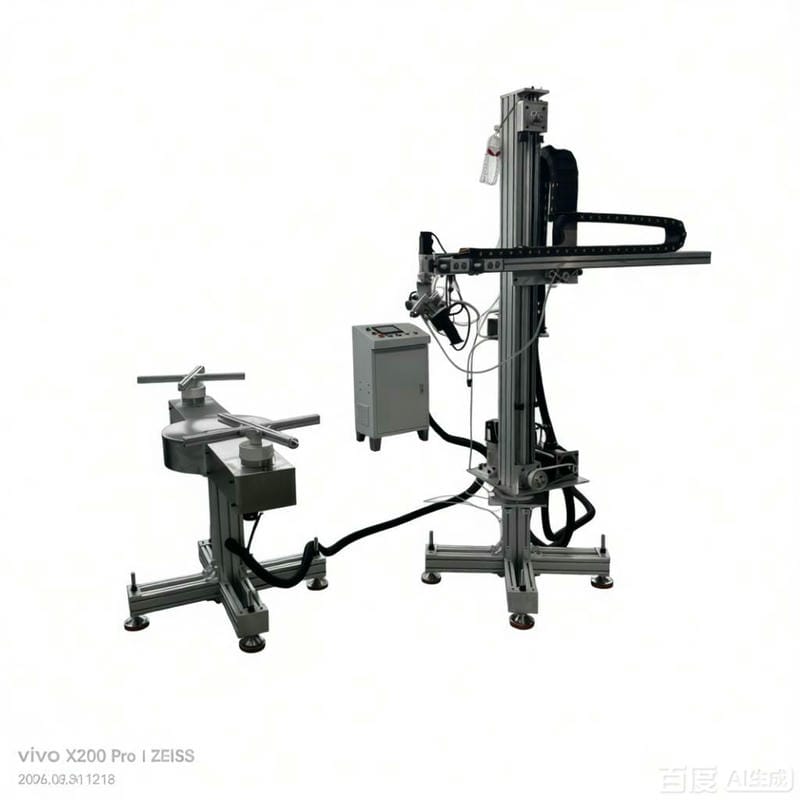

Yifan Drag Teaching Spray Painting Machine
Yifan Automation’s drag teaching spray painting machine is designed for manufacturers looking for a flexible industrial coating solution.
Key specifications include:
| Specification | Details |
|---|---|
| Spraying Range | 1000 × 600 × 600 mm |
| Turntable Size | 500 × 500 mm |
| Turntable Height | 750 mm |
| Working Voltage | 220V |
| Motion Memory | 500+ paths |
| Workstation | A/B dual workstation |
| Teaching Method | Drag teaching |
The actual configuration can be selected according to product dimensions, material, paint type, production volume, and coating requirements.
Is Drag Teaching Spray Painting Suitable for Your Factory?
This type of automatic spray painting machine can be a good option if your factory:
- Currently relies on manual spraying
- Produces multiple product models
- Needs repeatable spraying paths
- Works with irregular-shaped products
- Wants to reduce repetitive labor
- Does not want complicated robot programming
For highly standardized, high-volume production, a fully robotic spray painting line may be more suitable. For flexible production and multiple product types, drag teaching can provide a practical automation solution.
Conclusion
A drag teaching spray painting machine provides a simple and flexible way to automate industrial coating.
With manual path teaching, 500+ stored motion paths, and A/B dual workstations, it can help manufacturers improve spraying consistency and reduce repetitive manual work.
It can be used for furniture, hardware, plastic components, and various irregular-shaped products.
If you are considering spray painting automation, provide your product dimensions, material, paint type, and production requirements to evaluate the right coating solution.
